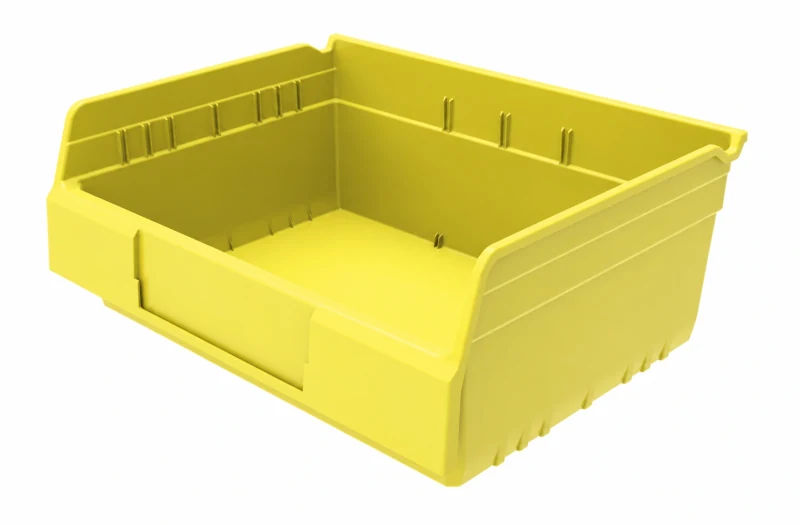

Yellow open-front shelf bin illustrated in the storage catalog
Product overview TK3115–TK6415 selected references · Product reference image.
Product overview Crosswise partition Lengthwise partition Empty bins nested together Shelf-bin picking station
Yellow open-front shelf bin illustrated in the storage catalog

TK3115–TK6415 selected references · Product reference image.

Industrial storage

Shelf bins

150 mm high polypropylene shelf bins in ten catalog sizes. Compare 300, 500 and 600 mm depths for shelving and parts-picking systems.

ReferenceTK3115–TK6415 selected references
Request a quote Ask for the catalog

MOQ, customization and lead time depend on the selected model and order.

Compare 10 catalog references ↓

Reference specifications

Shelf bins reference specifications
Material listedImpact polypropylene (PP)
Outside height150 mm
Catalog depths300 / 500 / 600 mm

Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.

Quotation requirements

Specify your application.

  • Shelf opening and depth
  • Usable inside dimensions
  • Dividers, labels and colors
  • Quantity by size
Send your requirements ↗

Models & specifications

10 catalog references

Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.

Shelf bins: catalog model comparison
ModelOutside D × W × H (mm)Inside D × W × H (mm)Carton D × W × H (mm)Quantity / cartonInquiry
TK3115300 × 100 × 150280 × 79 × 88610 × 405 × 40540Request quote
TK3215300 × 200 × 150280 × 178 × 88610 × 605 × 40530Request quote
TK3315300 × 300 × 150280 × 277 × 88610 × 605 × 40520Request quote
TK3415300 × 400 × 150280 × 376 × 88610 × 405 × 40510Request quote
TK5215500 × 200 × 150480 × 178 × 88510 × 605 × 40515Request quote
TK5315500 × 300 × 150480 × 277 × 88510 × 605 × 40510Request quote
TK5415500 × 400 × 150480 × 376 × 88510 × 405 × 4055Request quote
TK6215600 × 200 × 150580 × 178 × 88610 × 605 × 40515Request quote
TK6315600 × 300 × 150580 × 277 × 88610 × 605 × 40510Request quote
TK6415600 × 400 × 150580 × 376 × 88610 × 405 × 4055Request quote

Product details

A closer look at construction and available accessories.

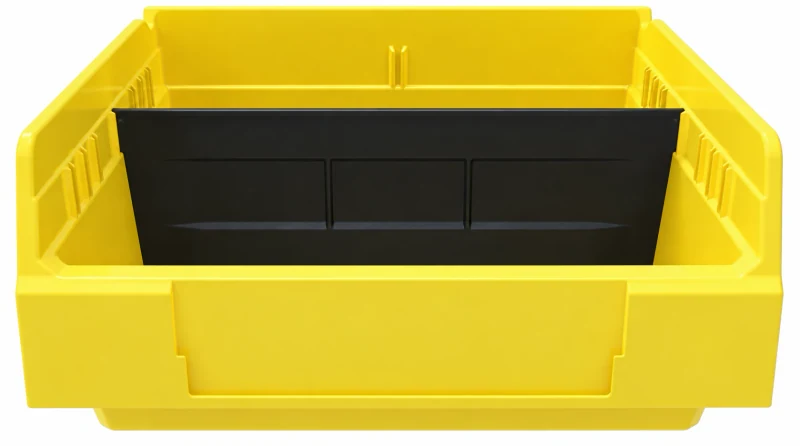

Crosswise partition — Shelf bins

Crosswise partition

Crosswise divider fitted into the internal slots. Specify the compartment layout needed for your parts.

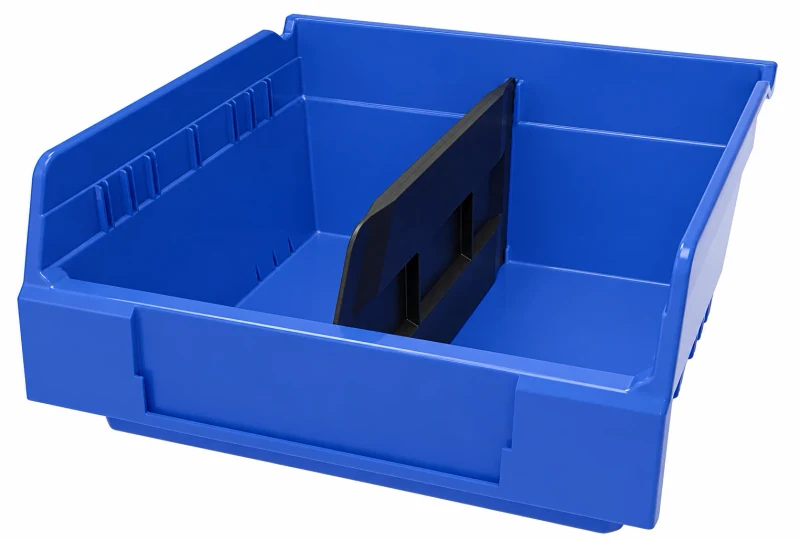

Lengthwise partition — Shelf bins

Lengthwise partition

Lengthwise divider option shown in a blue shelf bin. Divider fit varies by bin width.

In use & system examples

Examples to help plan your installation. The selected model and quotation define compatibility and what is included.

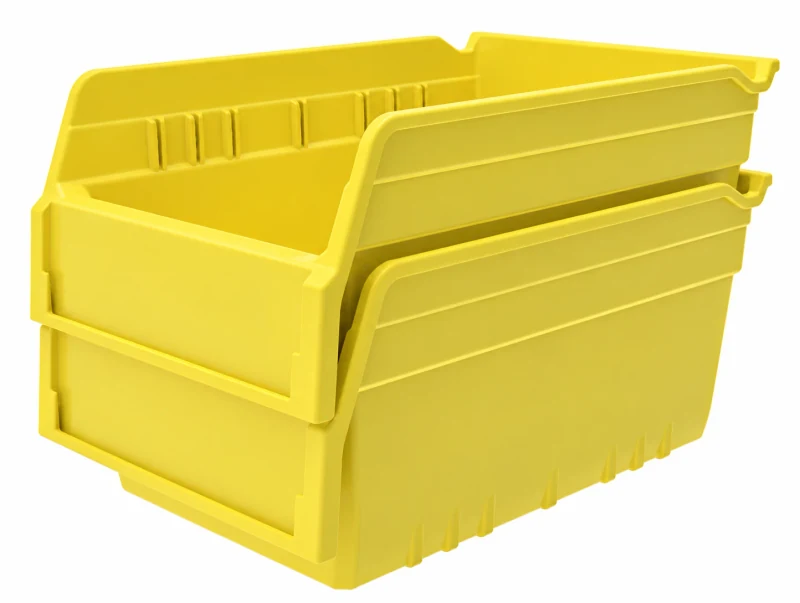

Empty bins nested together — Shelf bins

Empty bins nested together

Nested empty bins reduce the space used for storage and return handling. Confirm the nesting arrangement for the selected size.

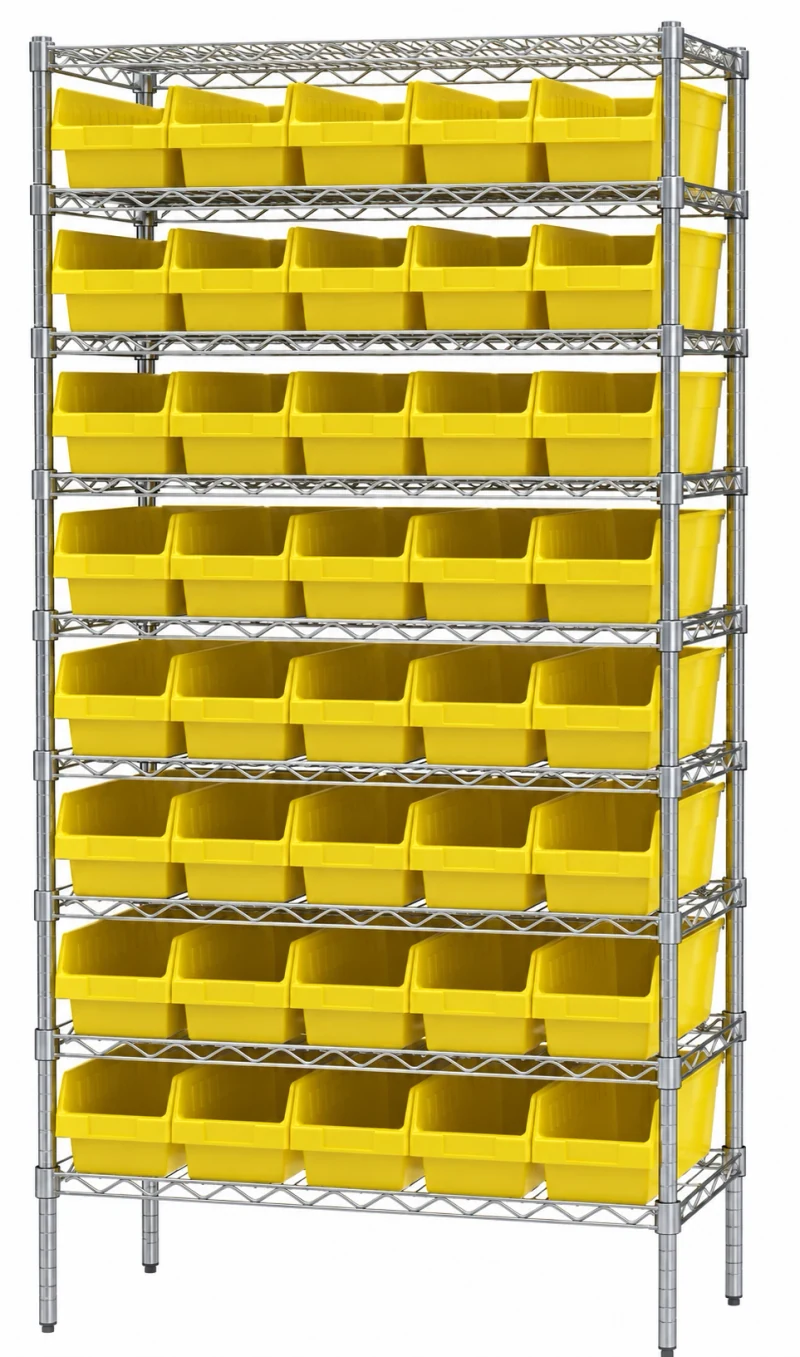

Shelf-bin picking station — Shelf bins

Shelf-bin picking station

Example of yellow shelf bins arranged on wire shelving. Rack dimensions and the bin assortment are specified for each project.

Product selection & purchasing

Sourcing Shelf bins

Applications & product range

Open-front shelf bins provide access to components stored on shelving. The selected TK references share a 150 mm outside height, with several widths and depths. The catalog illustrates nesting, divider and label arrangements for storage-system purchasing.

Configuration & purchasing requirements

Check shelf depth, clear opening and the usable inside space required by the contents. Specify divider quantity, label holders and colors by model. Confirm whether accessories are included and review a sample with the intended shelving before a volume order.

OEM options, samples & sourcing services →
