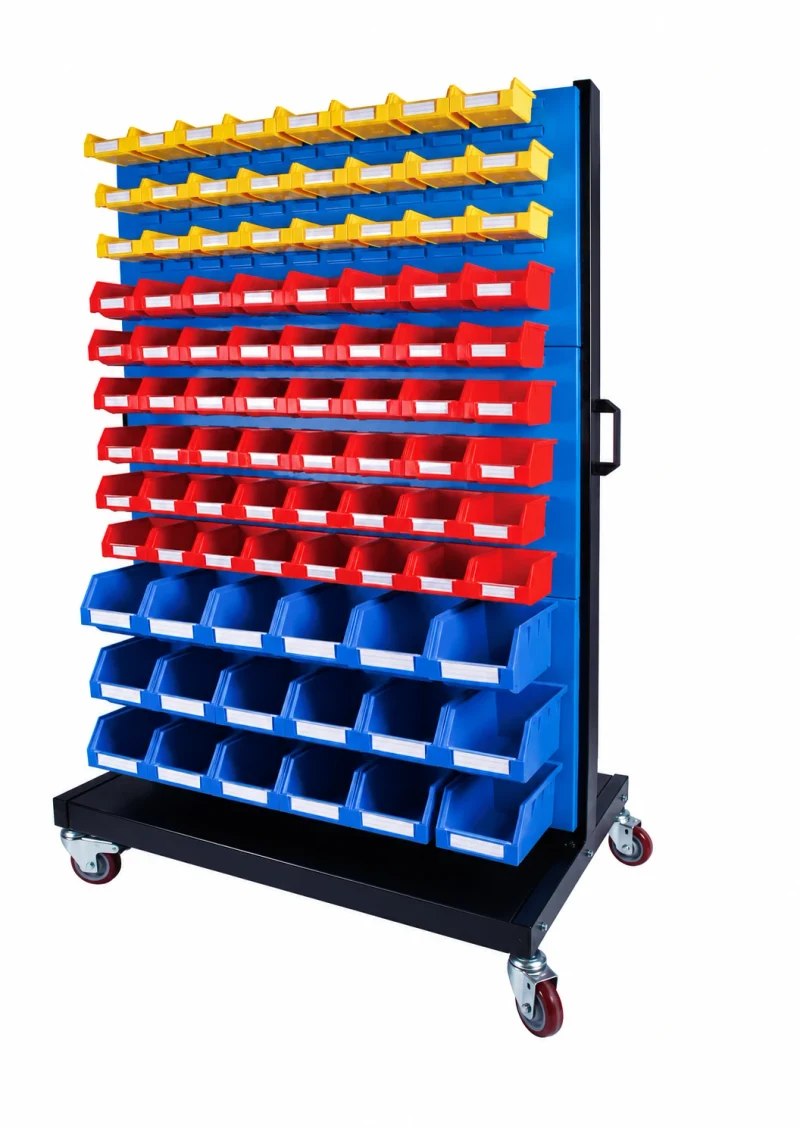

Picking bin racks shown in the industrial storage catalog — Product overview KM / KR / KL rack series · Product reference image.

Industrial storage

Picking bin racks

Mobile, starter and add-on picking racks for hanging bins and tools. Compare ten rack references, panel counts and single- or double-sided layouts.

ReferenceKM / KR / KL rack series

Request a quote Ask for the catalog

MOQ, customization and lead time depend on the selected model and order.

Compare 10 catalog references ↓

Reference specifications

Picking bin racks reference specifications
Rack types	Mobile / starter / add-on
Panel options	Louvered bin panel / perforated tool panel
Sides	Single or double, by model
Bin selection	TK011–TK015 / TK001–TK005 / TK007 / TK008 / TK010

Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.

Quotation requirements

Specify your application.

Starter, add-on or mobile configuration
Single or double-sided layout
Panel types and bin quantities
Space available and required load

Send your requirements ↗

Models & specifications

10 catalog references

Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.

Picking bin racks: catalog model comparison
Model	L × W × H (mm)	Rack type	Sides	Panels	Inquiry
KM-2240	960 × 610 × 1110	Mobile	Double	4	Request quote
KM-2360	960 × 610 × 1560	Mobile	Double	6	Request quote
KR-1330	970 × 375 × 1450	Starter	Single	3	Request quote
KR-1440	970 × 375 × 1910	Starter	Single	4	Request quote
KR-2360	970 × 630 × 1450	Starter	Double	6	Request quote
KR-2480	970 × 630 × 1910	Starter	Double	8	Request quote
KL-1330	930 × 375 × 1450	Add-on	Single	3	Request quote
KL-2360	930 × 630 × 1450	Add-on	Double	6	Request quote
KL-1440	930 × 375 × 1910	Add-on	Single	4	Request quote
KL-2480	930 × 630 × 1910	Add-on	Double	8	Request quote

Product details

A closer look at construction and available accessories.

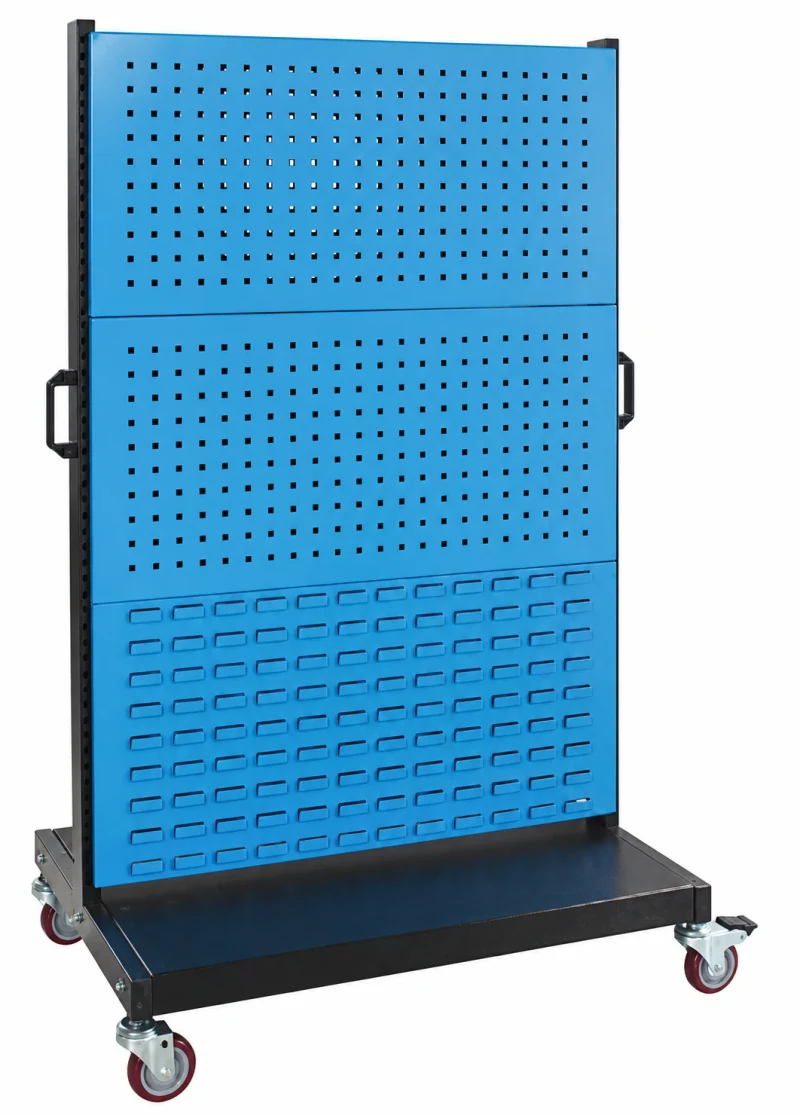

Perforated and louvered panels — Picking bin racks — Perforated and louvered panels
Unloaded mobile rack showing perforated upper panels and louvered lower panels. Choose panel counts and rack configuration from the model table.

Product selection & purchasing

Sourcing Picking bin racks

Applications & product range

Picking racks combine louvered bin panels or perforated tool panels with a freestanding frame. KM references are mobile, KR references are starter racks and KL references are add-on racks. Single- and double-sided formats support different workshop and warehouse layouts.

Configuration & purchasing requirements

Select a starter or mobile frame before adding extension sections. Specify the panel mix and quantities of each bin model. Full-bin quantities in the catalog are alternative all-one-size arrangements, not a promise that every listed bin set is supplied together.
