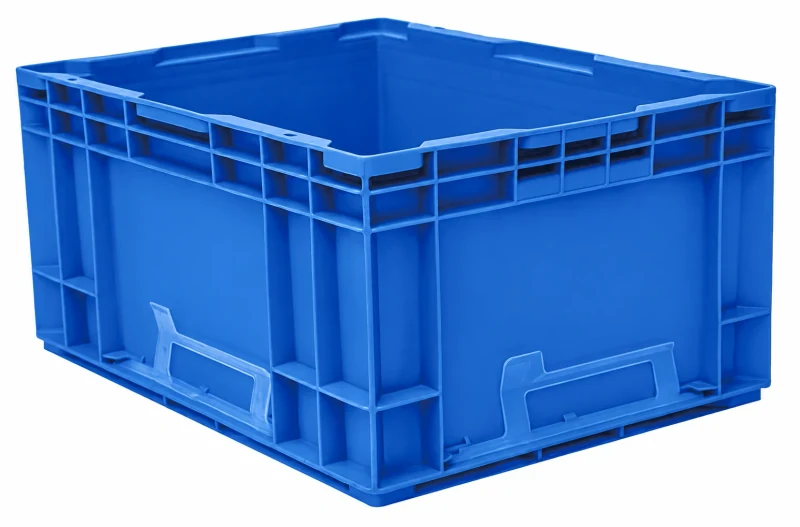

HP stacking containers shown in the industrial storage catalog
Product overview HP-3A–HP-6E listed references · Product reference image.
Product overview Stacked container sizes Molded handhold Corner ribs and label area
HP stacking containers shown in the industrial storage catalog

HP-3A–HP-6E listed references · Product reference image.

Industrial storage

HP stacking containers

HP-series reusable stacking containers in 16 sizes and catalog volumes from 7.5 to 77.5 L. Compare outside and usable dimensions for industrial handling.

ReferenceHP-3A–HP-6E listed references
Request a quote Ask for the catalog

MOQ, customization and lead time depend on the selected model and order.

Compare 16 catalog references ↓

Reference specifications

HP stacking containers reference specifications
Material description in catalogCopolymer
Catalog colorsBlue and gray
Catalog volume range7.5–77.5 L
Outside footprints365 × 275 / 435 × 325 / 550 × 365 / 650 × 435 mm

Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.

Quotation requirements

Specify your application.

  • Outside footprint and usable internal space
  • Contents and stacking requirements
  • Material, color and identification
  • Order quantity and handling system
Send your requirements ↗

Models & specifications

16 catalog references

Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.

HP stacking containers: catalog model comparison
ModelOutside dimensions (mm)Usable dimensions (mm)Catalog volume (L)Inquiry
HP-3A365 × 275 × 110325 × 235 × 907.5Request quote
HP-3B365 × 275 × 160325 × 235 × 14011.5Request quote
HP-3C365 × 275 × 220325 × 235 × 20013.5Request quote
HP-4A435 × 325 × 110390 × 280 × 9011Request quote
HP-4B435 × 325 × 160390 × 280 × 14016.8Request quote
HP-4C435 × 325 × 210390 × 280 × 19022.6Request quote
HP-5A550 × 365 × 110505 × 320 × 9016Request quote
HP-5B550 × 365 × 160505 × 320 × 14024.6Request quote
HP-5C550 × 365 × 210505 × 320 × 19033Request quote
HP-5D550 × 365 × 260505 × 320 × 24041.6Request quote
HP-5E550 × 365 × 330505 × 320 × 31053.5Request quote
HP-6A650 × 435 × 110605 × 390 × 9023.4Request quote
HP-6B650 × 435 × 160605 × 390 × 14035.7Request quote
HP-6C650 × 435 × 210605 × 390 × 19048Request quote
HP-6D650 × 435 × 260605 × 390 × 24660.3Request quote
HP-6E650 × 435 × 330605 × 390 × 31077.5Request quote

Product details

A closer look at construction and available accessories.

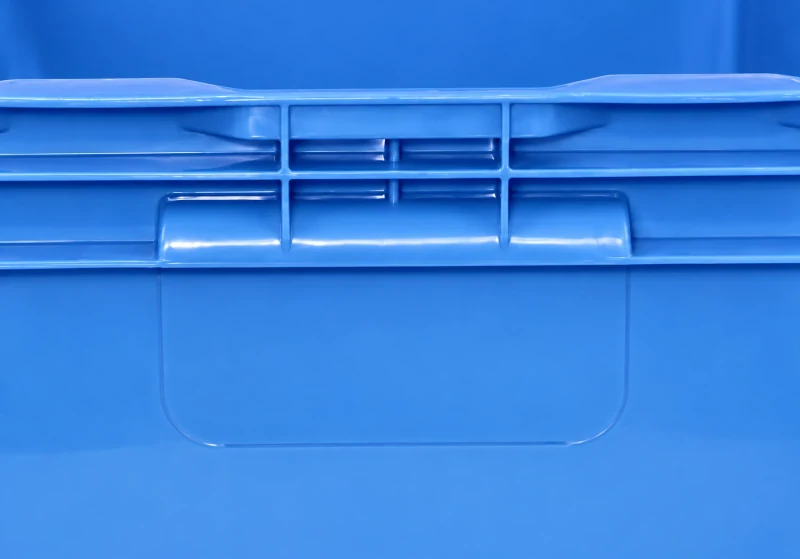

Molded handhold — HP stacking containers

Molded handhold

Close-up of the molded handhold and upper rim.

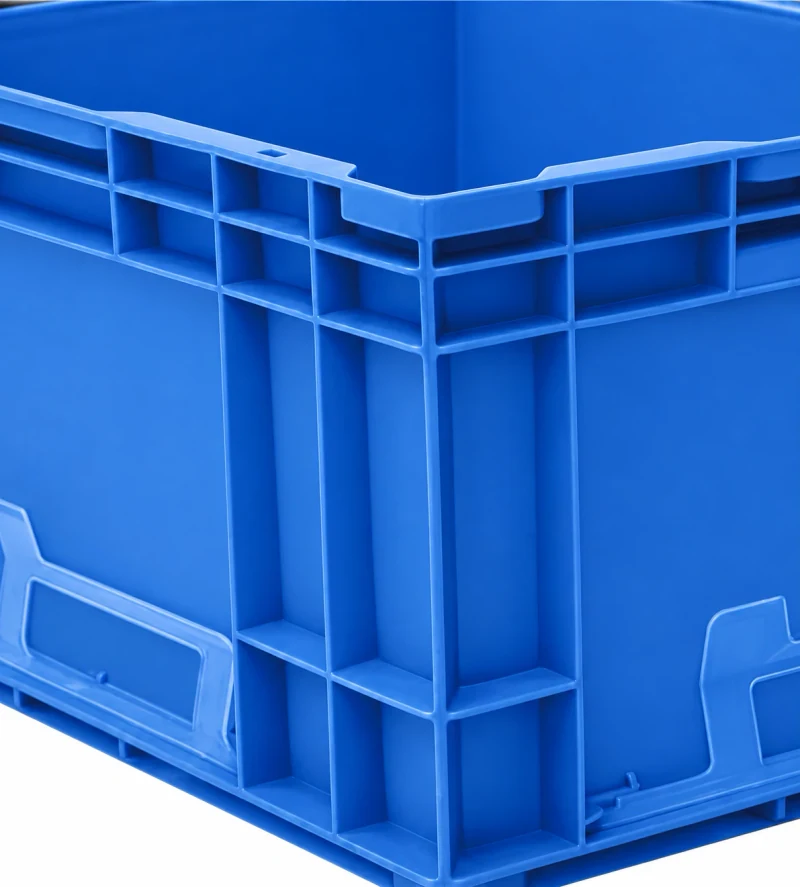

Corner ribs and label area — HP stacking containers

Corner ribs and label area

Corner construction and molded front label area. Specify identification requirements when requesting a quotation.

In use & system examples

Examples to help plan your installation. The selected model and quotation define compatibility and what is included.

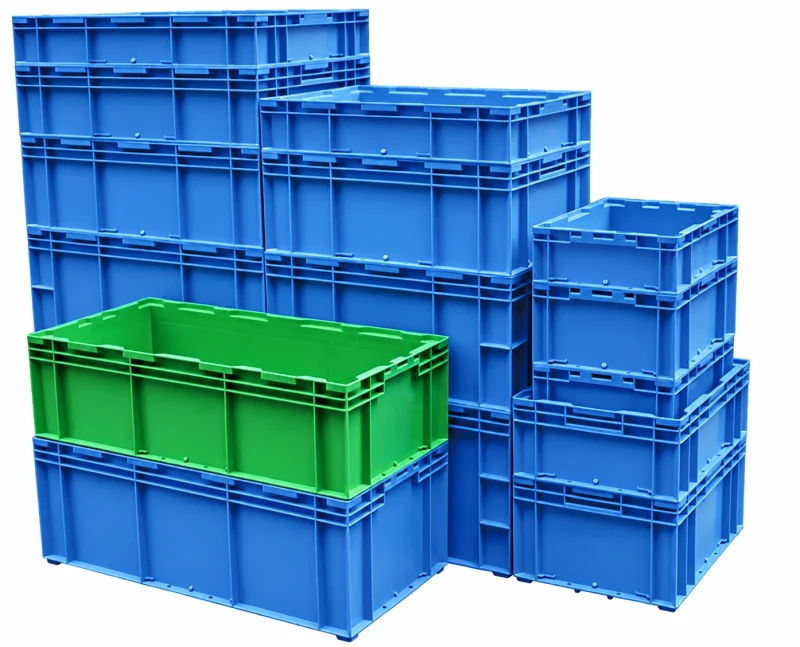

Stacked container sizes — HP stacking containers

Stacked container sizes

Stacked HP container examples in several heights. Match footprints and confirm the permitted stacking combination for the intended use.

Product selection & purchasing

Sourcing HP stacking containers

Applications & product range

HP stacking containers provide open-top storage for components and goods. The catalog shows ribbed walls, reinforced bases, molded handles and label-holder areas, with blue and gray listed for the size range.

Configuration & purchasing requirements

Match the outside footprint to the storage and handling system, then verify usable space for the contents. Specify base design, stacking requirements, polymer grade and color. Pallet compatibility is checked against the actual pallet layout and container dimensions.
