Industrial storage
Stacking Euro containers in 23 catalog sizes, from 300 × 200 to 1200 × 400 mm footprints. Compare dimensions and volumes for industrial storage.
MOQ, customization and lead time depend on the selected model and order.
Compare 23 catalog references ↓| Outside footprints | 300 × 200 / 400 × 300 / 600 × 400 / 800 × 400 / 900 × 400 / 800 × 600 / 1200 × 400 mm |
|---|---|
| Material description in catalog | Copolymer |
Specifications shown are catalog references. Your quotation confirms the current model, drawing and agreed requirements for the order.
Quotation requirements
Compare catalog references below. Select a reference to include it in your inquiry; current specifications and options are confirmed with your quotation.
| Model | Outside L × W × H (mm) | Inside L × W × H (mm) | Catalog volume, unit to confirm | Inquiry |
|---|---|---|---|---|
| EU2311 | 300 × 200 × 120 | 265 × 165 × 110 | 4.0 | Request quote |
| EU23148 | 300 × 200 × 148 | 265 × 165 × 140 | 5.1 | Request quote |
| EU4311 | 400 × 300 × 120 | 365 × 265 × 110 | 9.1 | Request quote |
| EU43148 | 400 × 300 × 148 | 365 × 265 × 140 | 11.8 | Request quote |
| EU4316 | 400 × 300 × 170 | 365 × 265 × 160 | 13.6 | Request quote |
| EU4322 | 400 × 300 × 230 | 365 × 265 × 220 | 19.0 | Request quote |
| EU4328 | 400 × 300 × 280 | 365 × 265 × 270 | 23.5 | Request quote |
| EU4611 | 600 × 400 × 120 | 565 × 365 × 110 | 19.7 | Request quote |
| EU46148 | 600 × 400 × 148 | 565 × 365 × 140 | 25.6 | Request quote |
| EU4616 | 600 × 400 × 170 | 565 × 365 × 160 | 29.6 | Request quote |
| EU4622 | 600 × 400 × 230 | 565 × 365 × 220 | 41.4 | Request quote |
| EU4628 | 600 × 400 × 280 | 565 × 365 × 270 | 51.2 | Request quote |
| EU4633 | 600 × 400 × 340 | 565 × 365 × 330 | 63.0 | Request quote |
| EU4822 | 800 × 400 × 230 | 765 × 365 × 220 | 56.2 | Request quote |
| EU4833 | 800 × 400 × 340 | 765 × 365 × 330 | 85.7 | Request quote |
| EU4911 | 900 × 400 × 120 | 865 × 365 × 110 | 30.4 | Request quote |
| EU4922 | 900 × 400 × 230 | 865 × 365 × 220 | 63.7 | Request quote |
| EU8611 | 800 × 600 × 120 | 765 × 565 × 110 | 41.0 | Request quote |
| EU8622 | 800 × 600 × 230 | 765 × 565 × 220 | 88.0 | Request quote |
| EU8628 | 800 × 600 × 280 | 765 × 565 × 270 | 108.9 | Request quote |
| EU8633 | 800 × 600 × 340 | 765 × 565 × 330 | 134.0 | Request quote |
| EU41211 | 1200 × 400 × 120 | 1165 × 365 × 110 | 41.0 | Request quote |
| EU41222 | 1200 × 400 × 230 | 1165 × 365 × 220 | 90.2 | Request quote |
A closer look at construction and available accessories.

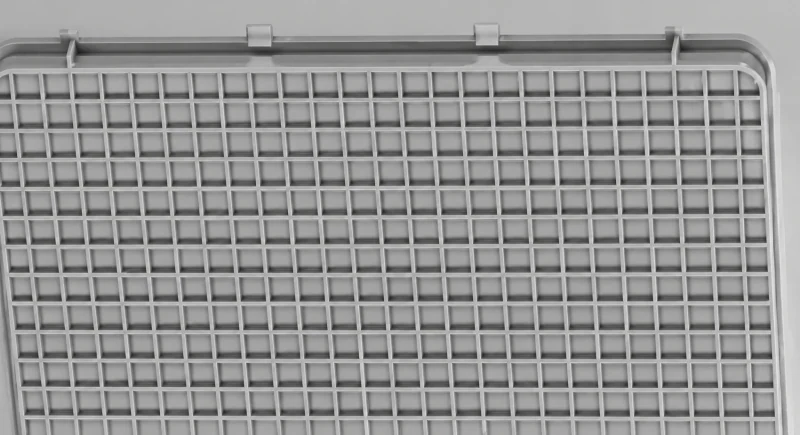

Base detail from the Euro container range. Specify the base design needed for your handling equipment.

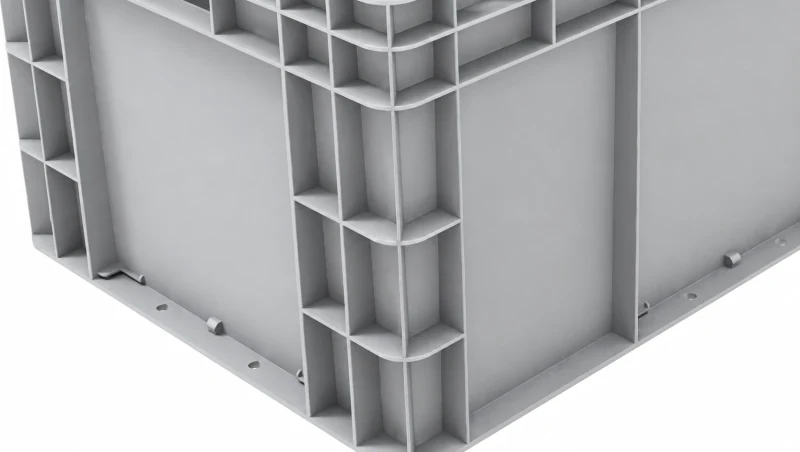

External corner ribs shown on a Euro container. Dimensions and construction are confirmed for the chosen model.
Examples to help plan your installation. The selected model and quotation define compatibility and what is included.
Example of mixed container sizes arranged on a pallet. Confirm the actual footprints and stacking combination; the pictured assortment is not a fixed set.
